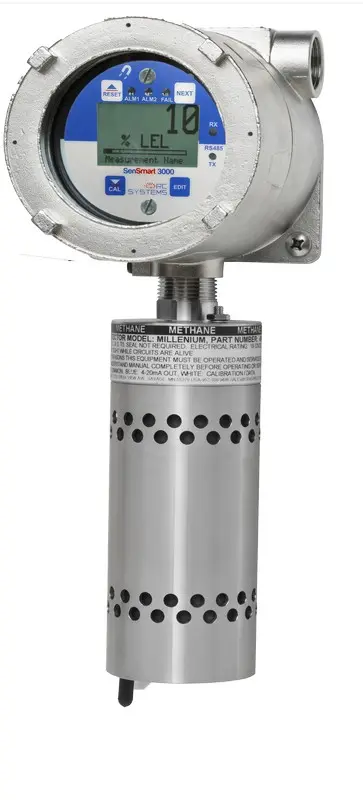

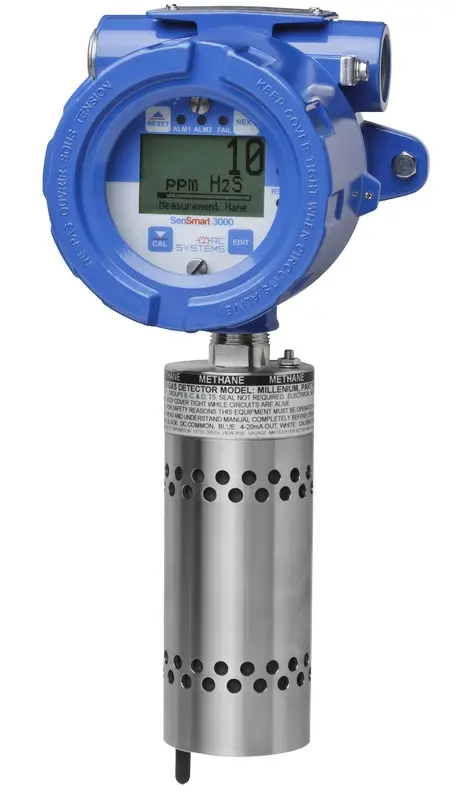

SenSmart 3400M Millenium IR CO2 Gas Detector

The SenSmart 3400 3-wire gas detector is built with our reliable ‘ST-48’ smart transmitter, which provides the cutting-edge technology in toxic and combustible gas detection. It’s a universal, easy to use detector that supports Infrared sensors.

The microprocessor based intelligent SenSmart infrared gas detector is ideally suited for use in harsh environments and where conventional catalytic detectors is prohibitive. These infrared gas detectors perform reliably in the presence of silicone and other catalyst poisoning agents and operate in oxygen free environments or where high background gas levels are present.

Features

• CSA Certified for Class I, Div 1 Locations
• Graphic LCD display shows values, units, trend graph, alarm levels
• Backlit display for better visibility in low light conditions
• LED indication of alarm status
• Supports both local and remote sensors for easy installation
• Non-intrusive, prompted calibration with programmable cal-gas
• Power-up and post-calibration delays eliminate false alarms
• Options for 3x 5A alarm contacts, isolated 4-20mA and MODBUS®
•  Auto-recognition of Smart Sensors uploads calibration data and more
• Real-time clock and calendar logs alarms, calibration and power-up events
• Security mode allows locking of critical parameters
• Fault supervision circuitry detects failed sensor and transmits warning
• Setup in hazardous area requires only simple magnetic wand

Millenium Sensor Features

• Virtually maintenance free infrared sensing technology
• Low cost of ownership with over five years operating life
• Rugged stainless steel construction with fast response time
• Requires no routine calibration to ensure proper operation
• Fault indications for all failure states
• Patented self-compensating optics with no moving parts
• Heated optical chamber prevents condensation
• A multi-layered filtering system protects optics from dirt and water ingress
• Straight optical path eliminates the need for reflective surfaces, such as mirrors or beam splitters
• Performs well in the presence of high concentrations or constant background levels of hydrocarbons and in oxygen depleted atmospheres
• Highly resistant to poisoning and etching
• Standard 4-20 mA output (source)
